The radius is one of the many elements that exist in a circle. The radius is a segment that connects the center of the circle with any point located on the circle itself. Each circle has an infinite number of radii and their length is exactly the same, that is, they are identical.
In this article we will learn what the radius is and we will see how we can use it to calculate the perimeter of the circle and the area of the circle.

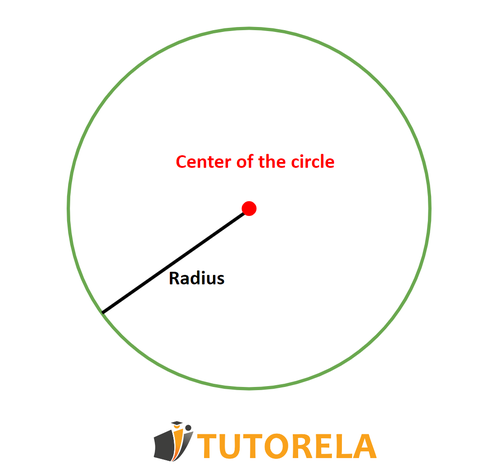

The radius is a segment that connects the center of the circle with any point located on the circle itself. We will illustrate it with a graph

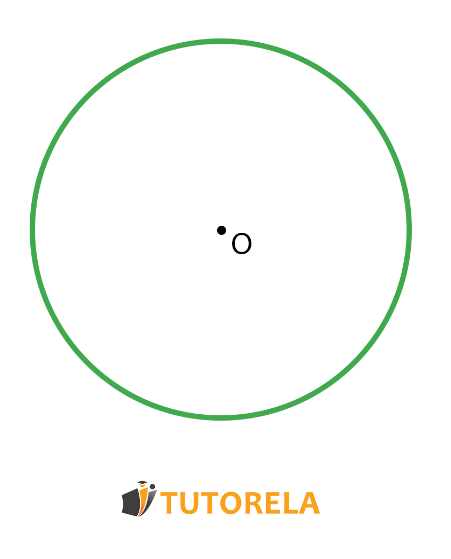

Every circle has a center point. In the following illustration it is marked with the letter O. Now we will draw a line from the center point to any other point on the circle.

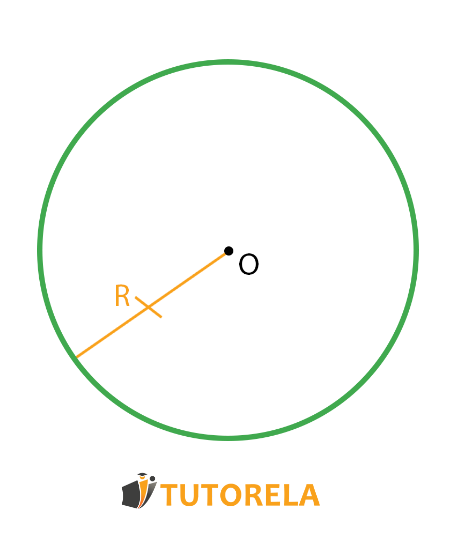

This line is the radius of the circle, usually denoted by the letter R uppercase or r lowercase. We can draw an infinite number of radii on each circle and they will all be of identical length.

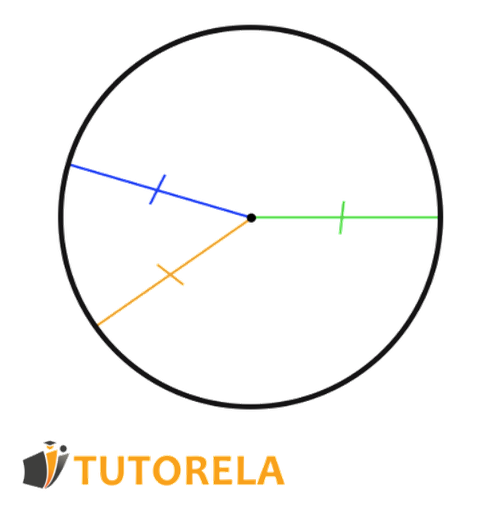

For example, on this circle we have drawn three radii. All the radii of the circle have the same length. That is, the radius of a circle has a fixed length.
Diameter

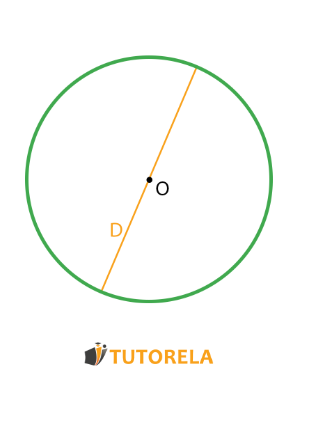

The diameter of the circumference is the chord that passes exactly through the center and is usually denoted by the letter D.
For example:
The length of the diameter is equal to twice the length of the radius. Can you understand why? We can imagine that the diameter is composed of two radii.
Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today
Test your knowledge
Question 1
M is the center of the circle.
Perhaps \( AB=CD \)
Incorrect
Correct Answer:
No
Question 2
M is the center of the circle.
In the figure we observe 3 diameters?
Incorrect
Correct Answer:
No
Question 3
All ____ about the circle located in the distance ____ from the ____ circle
Incorrect
Correct Answer:
Point, equal, center
Circumference
With the length of the radius we can calculate the perimeter of the circle and the area of the circle. Just for that we have the formulas that will help us to do it.
We will mark the perimeter of the circle with the letter P. The formula to calculate the perimeter of the circle is:
C=2πr
Let's explain it in words: the circumference equals 2 multiplied by the number PI, multiplied by the radius. Recall that the value of PI(which is detailed in other articles), is approximately equivalent to 3.14
Here are some examples:
Example 1

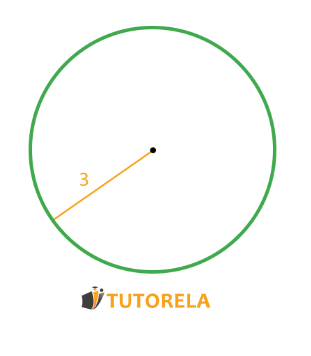

Given a circle, knowing that its radius measures 3 cm.
What is the perimeter of the circumference?
Solution:
Let's write it down
R=3
Now let's remember the formula we just learned to calculate the perimeter:
P=2πr
Let's put in the formula the parameters and we will get:
P=2×3.14×3
P=18.84 cm
Thus, we have based on the length of the radius to find the perimeter.
Area of the circle
With the radius we can also calculate the area of the circle, usually denoted by the letter A. Just for that we have the following formula:
A=πr2
Let's explain it in words: the area of the circle equals PI times the radius squared.
Do you know what the answer is?
Question 1
Is it correct to say the area of the circumference?
Incorrect
Correct Answer:
Not true
Question 2
There are only 4 radii in a circle.
Incorrect
Correct Answer:
False
Question 3
If the radius of a circle is 5 cm, then the length of the diameter is 10 cm.
Incorrect
Correct Answer:
True
Example 2

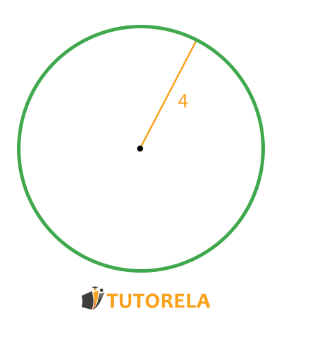

Given a circle with a radius of 4 cm.
What is the area of the circle?
Solution:
Let's mark the data: R=4 cm.
Now let's remember the formula to calculate the area of a circle:
A=πr2
and let's set the parameters.
A=3.14×42
A=3.14×16
A=50.24
That is, we have arrived at that the area of the circle is 50.24 cm².
Pay attention to the units of measurement. The length of the radius is given in cm, but it is raised to the power of two and, therefore, the area is measured in cm² (cm squared).
If this article interests you, you may also be interested in the following articles:
On theTutorela blog you will find a variety of articles about mathematics.
Radius exercises
Exercise 1
Request

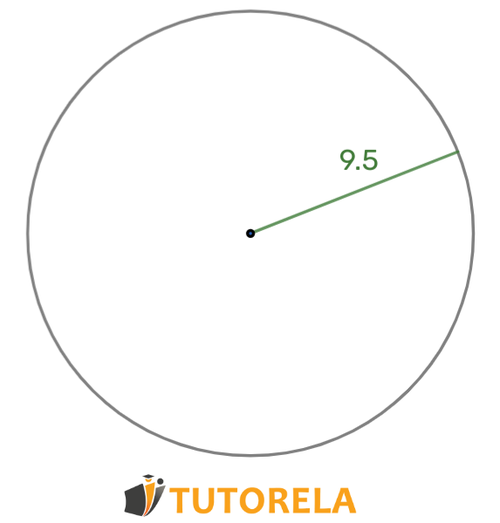

Given the circle in the figure
The radius of the circle is equal to: 9.5
What is its circumference?
The radius of the circle is
r=921
We use the formula of the circumference
2πr
We replace accordingly and get
2⋅π⋅921=19π
Answer
19π
Check your understanding
Question 1
Which figure shows the radius of a circle?
Incorrect
Correct Answer:
Question 2
Is there sufficient data to determine that
\( GH=AB \)
Incorrect
Correct Answer:
No
Question 3
The number Pi \( (\pi) \) represents the relationship between which parts of the circle?
Incorrect
Correct Answer:
Perimeter and diameter
Exercise 2
Problem
Given that the circumference is equal to: 8
What is the length of the radius of the circle?
Solution
According to the data 2πr=8
We divide on both sides by 2π
2π2πr=2π8
Simplify and get
r=π4
Answer
r=π4
Exercise 3
Question
The radius of the circle is 4cm centimeters.
The length of the side of the square is 8cm centimeters.
In which shape is there a larger perimeter?
Solution
The circumference is: 2πr
We replace the data accordingly.
2⋅π⋅4=8π
8π=8⋅3.14=25.12
The perimeter of the square is equal to 4a
4⋅8=32
Answer
Square
Do you think you will be able to solve it?
Question 1
Which diagram shows a circle with a point marked in the circle and not on the circle?
Incorrect
Correct Answer:
Question 2
In which of the circles is the center of the circle marked?
Incorrect
Correct Answer:
Question 3
Is it possible that the circumference of a circle is 8 meters and its diameter is 4 meters?
Incorrect
Correct Answer:
Impossible
Exercise 4
Question
Given that the circumference of the circle is equal to 16
What is the length of the radius of the circle?
Solution
2πr=16
We divide the two sides by: 2π
We obtain
2π2πr=2π16
Reduce 2π
r=r8
Answer
r=r8
Exercise 5
Question

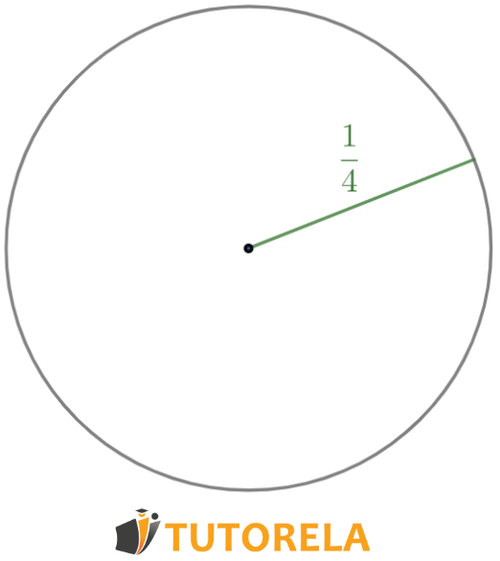

Given the circle in the figure
The radius of the circle is equal to: 41
What is the circumference?
Solution
The radius of the circle is equal to r=41
We use the formula of the circumference of the circle 2πr
Replace accordingly
2⋅π⋅41=2π
Answer
2π
Test your knowledge
Question 1
M is the center of the circle.
Perhaps \( CM+MD=2EM \)
Incorrect
Correct Answer:
Yes
Question 2
Perhaps \( P=\pi\times EF \)
Incorrect
Correct Answer:
Yes
Question 3
M is the center of the circle.
Perhaps \( MF=MC \)
Incorrect
Correct Answer:
Yes
Review questions
What does radius mean in a circle?
Recall that the radius of a circle is a line segment that passes from the center of the circle and touches one of the points of the circumference, and is half the diameter. Let's look at the following image to see the radius of the circle.
What is the radius of a circle 10 cm in diameter?
The radius is half of the diameter or we can say that the diameter is twice the radius, therefore if the diameter is equal to 10 cm, then half will be the radius and therefore
r=5 cm
Do you know what the answer is?
Question 1
M is the center of the circle.
Perhaps \( AB=CD \)
Incorrect
Correct Answer:
No
Question 2
M is the center of the circle.
In the figure we observe 3 diameters?
Incorrect
Correct Answer:
No
Question 3
All ____ about the circle located in the distance ____ from the ____ circle
Incorrect
Correct Answer:
Point, equal, center
What is the formula for calculating the perimeter and area of a circle knowing the radius and diameter?
The formula for finding the perimeter of a circle (the circumference) is the following:
P=2πr
We can express it as two times the number pi times the radius.
Since the diameter is twice the radius we can also write this formula as:
P=πD
We can read the above formula as the perimeter is equal to pi times the diameter.
Now to calculate the area of a circle which is also known as the surface area we have the following formula:
A=πr2
How to get the radius of a circle?
If we want to know the radius of a circle and we know the circumference or area we can use the formulas mentioned above,
For example if we know the circumference then we use the formula
P=2πr
And from this formula we isolate the radius, dividing it all by 2π, leaving the following form:
2πP=2π2πr
Simplifying the formula:
2πP=r
In a general way for any circumference:
r=2πP
Now if we know the surface and we want to obtain the radius we use the formula:
A=πr2
We isolate the radius in the equation, dividing all by pi:
πA=ππr2
πA=r2
Now, take the square root of both sides.
πA=r2
Simplifying and rearranging, we get the general way to find the radius of any circle if we are given the surface area
r=πA
Example 1
In a circle with circumference equal to 12 cm, calculate the radius:
From our formula
r=2πP
We just substitute the value of the circumference
r=2π12
r=π6
Answer
r=π6
Example 2
Question
A circle has an area of 64cm2, calculate the radius of the circumference:
Solution
In this case, the data we know is the area therefore from our formulas we have:
r=πA
Substituting the area:
r=π64cm2
Find the square root:
r=π64cm2
r=π8 cm
Result:
r=π8 cm
Check your understanding
Question 1
Is it correct to say the area of the circumference?
Incorrect
Correct Answer:
Not true
Question 2
There are only 4 radii in a circle.
Incorrect
Correct Answer:
False
Question 3
If the radius of a circle is 5 cm, then the length of the diameter is 10 cm.
Incorrect
Correct Answer:
True
Examples with solutions for Radius
Exercise #1
M is the center of the circle.
Perhaps AB=CD
Video Solution
Step-by-Step Solution
CD is a diameter, since it passes through the center of the circle, meaning it is the longest segment in the circle.
AB does not pass through the center of the circle and is not a diameter, therefore it is necessarily shorter.
Therefore:
AB=CD
Answer
No
Exercise #2
There are only 4 radii in a circle.
Step-by-Step Solution
A radius is a straight line that connects the center of the circle with a point on the circle itself.
Therefore, the answer is incorrect, as there are infinite radii.
Answer
False
Exercise #3
Which figure shows the radius of a circle?
Step-by-Step Solution
It is a straight line connecting the center of the circle to a point located on the circle itself.
Therefore, the diagram that fits the definition is c.
In diagram a, the line does not pass through the center, and in diagram b, it is a diameter.
Answer
Exercise #4
Which diagram shows a circle with a point marked in the circle and not on the circle?
Step-by-Step Solution
The interpretation of "in a circle" is inside the circle.
In diagrams (a) and (d) the point is on the circle, while in diagram (c) the point is outside of the circle.
Answer
Exercise #5
Is it possible that the circumference of a circle is 8 meters and its diameter is 4 meters?
Video Solution
Step-by-Step Solution
To calculate, we will use the formula:
2rP=π
Pi is the ratio between the circumference of the circle and the diameter of the circle.
