Parts of a Circle

🏆Practice parts of the circle

Parts of a Circle

Circle radius

The radius is the distance from the center point of the circle to any point on its circumference, it is denoted by RR and it equals half the diameter.

The diameter of the circle

The diameter is a straight line that passes through the center point of the circle and connects 22 points on the circumference. The diameter equals twice the radius.

Pi

Pi is a constant number that represents the ratio between a circle's circumference and its diameter.
Its symbol is ππ and it is always equal to 3.143.14.

perpendicular

A perpendicular is a straight line that extends from the center of the circle to any chord in the circle, divides the chord into 22 equal parts, creates 22 right angles with the chord, and bisects the arc corresponding to the chord.

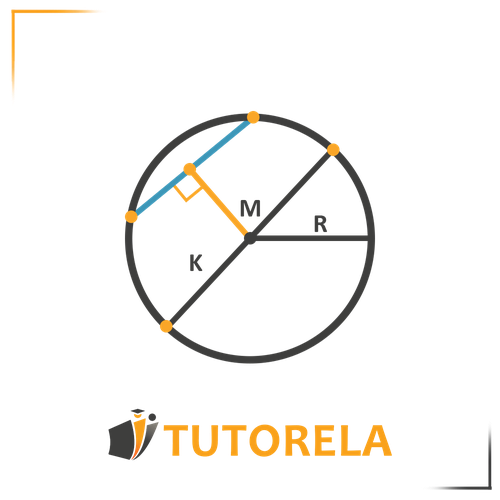

Circle diagram illustrating key geometric components including a radius, chord, and right triangle inscribed within the circle. Ideal for learning parts of a circle, radius, diameter, and perpendicular relationships in geometry.

MM - center of the circle
RR - radius of the circle
KK - diameter of the circle
Blue line - chord
Orange line - perpendicular

Start practice

Test yourself on parts of the circle!

einstein

All ____ about the circle located in the distance ____ from the ____ circle

Practice more now

Parts of a Circle

Let's start with a brief introduction:
Here's our circle:

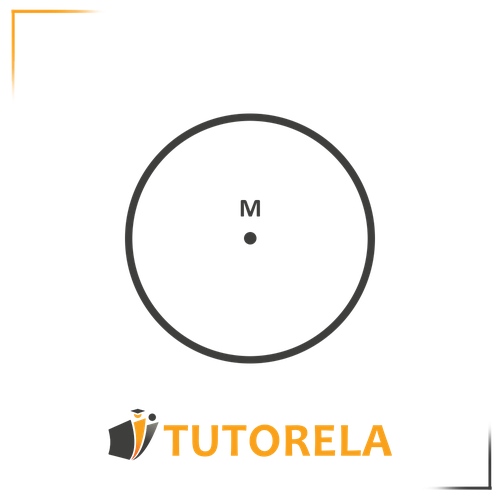

Basic circle diagram with a labeled center point 'M', illustrating the fundamental concept of a circle in geometry. Useful for learning about the center, radius, and circular shapes in mathematics.

We marked MM as the point at the center of the circle!

Radius of the circle

The radius is the distance from the center point of the circle to any point on its circumference.
Additionally the circle's radius equals half the circle's diameter, which is how we'll learn what a diameter is.
Radius is usually denoted by the letter RR
and can meet any point on the circumference. As long as it extends from the circle's center to the circumference, it is called the circle's radius

Examples:

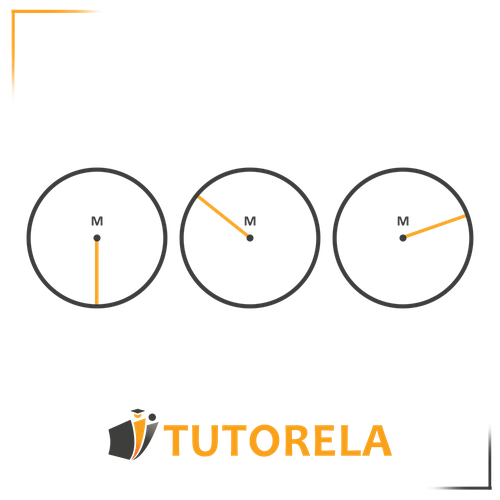

Illustration of three circles with labeled center points 'M' and different radii extending from the center to the circumference. This diagram visually explains the concept of radius in geometry and its variations.

Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today
Test your knowledge

The diameter of the circle

The diameter is a straight line that passes through the center point of the circle and connects 22 points on the circumference. Note that the diameter must pass through the center point!
The diameter will always be equal to twice the radius because the radius is half of the diameter.
Let's look at some examples:

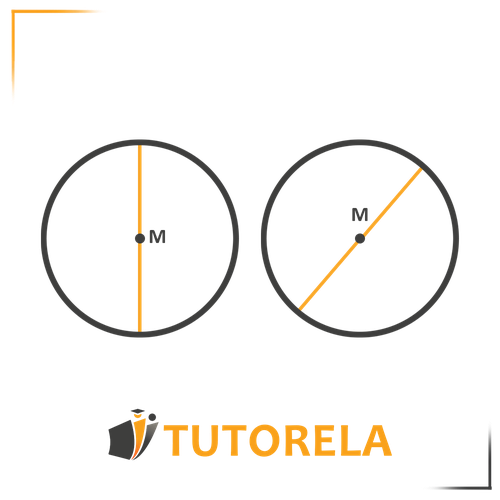

Diagram of two circles demonstrating key geometric concepts: the first circle highlights the diameter, a straight line passing through the center 'M' and touching both sides of the circumference, while the second circle illustrates a chord, a line segment connecting two points on the circle.

Pi

This is not an apple pie but rather pi in mathematics.
Pi is simply a constant number that represents the ratio between a circle's circumference and its diameter, and it appears in many formulas related to circles.
Its symbol is ππ and it always equals 3.143.14
All you need to remember is that when you see the pi symbol, you substitute 3.143.14.

Do you know what the answer is?

Circle circumference

The perimeter is actually the total length of the circular line that surrounds the circle. To calculate the perimeter's value, we'll use a formula.
Circle perimeter formula:
radiuspi2=radius\cdot pi\cdot2=

If we only have the diameter we can write that the circumference of the circle equals

diameterpidiameter\cdot pi

Remember - Pi is a constant number and will always be 3.143.14

Perpendicular

A perpendicular line is a straight line that extends from the center of the circle to any chord in the circle.
* The perpendicular line divides the chord into two equal halves
* The perpendicular line creates 22 right angles with the chord
* The perpendicular line bisects the arc (from the circumference) corresponding to the chord
Let's observe it in the illustration:

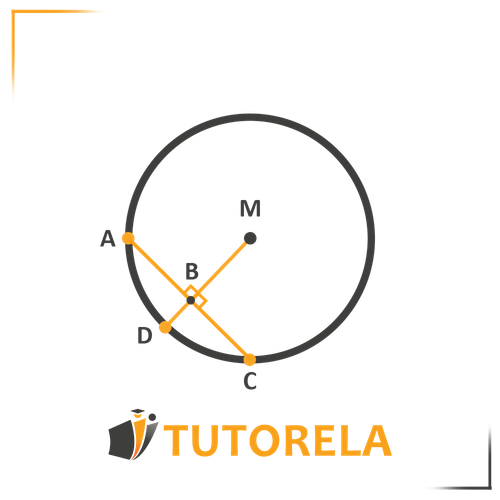

Geometric diagram of a circle illustrating key elements: the center 'M,' chords AC and AD, and the perpendicular bisector BD intersecting at point B. The diagram highlights the relationship between chords and perpendicular bisectors within a circle.

In other words, if we look at the illustration:
AB=BCAB=BC
AD=DCAD=DC
angle MBC=90MBC=90
angle ABD=90ABD=90

Check your understanding

The area of a circle

The area of a circle is calculated using the following formula:
Pir2Pi\cdot r^2
In words - to calculate the area of a circle, multiply pi times the radius of the circle squared
Remember - pi = 3.143.14

And now let's practice! Ready?

Question –
If given a circle with a diameter of 1818 cm
What will be the radius of the circle?

Solution:
We learned that diameter is twice the radius. This means that if we divide the diameter by 22 we will get the radius.
18:2=918:2=9
The radius equals 99 cm

Additional question:
Given a circle with a diameter of 2020 cm.
Determine the circumference of the circle? Use the radius

Solution:
Let's remember how to calculate the circumference of a circle. The formula for the circumference of a circle is
radiusπ2=radius\cdot\pi\cdot2=
The given diameter is 2020 cm, which means the radius is half of 2020, meaning:
20:2=1020:2=10
Pi is always 3.143.14
Now let's insert the data into the formula and we obtain the following answer:
103.142=62.810\cdot3.14\cdot2=62.8
The circumference of the circle is 62.862.8 cm
Note - If we weren't asked to use the circle's radius, we could have used the diameter in order to achieve the same result, just remember not to include the 22.
So according to the diameter formula, the circumference of the circle is:
203.14=62.820\cdot3.14=62.8
The result hasn't changed!

Do you think you will be able to solve it?

Examples with solutions for Parts of the Circle

Exercise #1

There are only 4 radii in a circle.

Step-by-Step Solution

A radius is a straight line that connects the center of the circle with a point on the circle itself.

Therefore, the answer is incorrect, as there are infinite radii.

Answer

False

Exercise #2

M is the center of the circle.

Perhaps AB=CD AB=CD

MMMAAABBBCCCDDDEEEFFFGGGHHH

Video Solution

Step-by-Step Solution

CD is a diameter, since it passes through the center of the circle, meaning it is the longest segment in the circle.

AB does not pass through the center of the circle and is not a diameter, therefore it is necessarily shorter.

Therefore:

ABCD AB\ne CD

Answer

No

Exercise #3

Which figure shows the radius of a circle?

Step-by-Step Solution

It is a straight line connecting the center of the circle to a point located on the circle itself.

Therefore, the diagram that fits the definition is c.

In diagram a, the line does not pass through the center, and in diagram b, it is a diameter.

Answer

Exercise #4

Which diagram shows a circle with a point marked in the circle and not on the circle?

Step-by-Step Solution

The interpretation of "in a circle" is inside the circle.

In diagrams (a) and (d) the point is on the circle, while in diagram (c) the point is outside of the circle.

Answer

Exercise #5

Is it possible that the circumference of a circle is 8 meters and its diameter is 4 meters?

Video Solution

Step-by-Step Solution

To calculate, we will use the formula:

P2r=π \frac{P}{2r}=\pi

Pi is the ratio between the circumference of the circle and the diameter of the circle.

The diameter is equal to 2 radii.

Let's substitute the given data into the formula:

84=π \frac{8}{4}=\pi

2π 2\ne\pi

Therefore, this situation is not possible.

Answer

Impossible
