Parallelogram for 9th grade

Parallelogram for 9th grade

Parallelogram properties illustration. Opposite sides are equal and parallel, opposite angles are equal, diagonals bisect each other, and adjacent angles are supplementary. A geometric diagram for learning about parallelograms in mathematics.

Definition and proofs

The definition of a parallelogram is a quadrilateral that has two pairs of parallel opposite sides.

As shown in the illustration, you can see that ABAB is parallel to DCDC
and ADAD is parallel to BCBC.
To prove that a shape is a parallelogram, you can use 5 proof theorems (but of course 1 is enough):
1. If a quadrilateral has two pairs of equal opposite angles - it is a parallelogram.
2. If a quadrilateral has two pairs of opposite sides parallel to each other - it is a parallelogram (as in the definition).
3. If a quadrilateral has two pairs of equal opposite sides - it is a parallelogram.
4. If the diagonals of a quadrilateral bisect each other - it is a parallelogram.
5. If a quadrilateral has one pair of sides that are both parallel and equal - it is a parallelogram.

Parallelogram for 9th grade

Definition and Proofs

The definition of a parallelogram is a quadrilateral that has two pairs of parallel opposite sides.

As shown in the illustration, you can see that ABAB is parallel to DCDC
and ADAD is parallel to BCBC.
To prove that a shape is a parallelogram, you can use 5 proof theorems (but of course 1 is enough):
1. If a quadrilateral has two pairs of equal opposite angles - it is a parallelogram.
2. If a quadrilateral has two pairs of opposite sides parallel to each other - it is a parallelogram (as in the definition).
3. If a quadrilateral has two pairs of equal opposite sides - it is a parallelogram.
4. If the diagonals of a quadrilateral bisect each other - it is a parallelogram.
5. If a quadrilateral has one pair of sides that are both parallel and equal - it is a parallelogram.

From a quadrilateral to a parallelogram

Let's go over the five ways to prove that the quadrilateral before us is a parallelogram!

The first way: In a quadrilateral where each pair of opposite sides are parallel to each other, the quadrilateral is a parallelogram.

Let's ask, are all pairs of opposite sides in the quadrilateral also parallel? If the answer is yes, we will determine that the quadrilateral is a parallelogram.

P6 - Parallelogram


When:
ABAB is parallel and opposite to DCDC
and
ADAD is parallel and opposite to BCBC
then:
ABCD ABCD is a parallelogram.

The second way: In a quadrilateral where each pair of opposite sides are equal to each other, the quadrilateral is a parallelogram.

Let's ask, are each pair of opposite sides in the quadrilateral equal? If the answer is yes, we will determine that the quadrilateral is a parallelogram.

P7 -Parallelogram


When:
AB=DCAB=DC and opposite
And
AD=BCAD=BC and opposite
Then:
ABCDABCD is a parallelogram.

The third way: If a quadrilateral has one pair of opposite sides that are both equal and parallel, then the quadrilateral is a parallelogram.

We ask, is there a pair of sides in the quadrilateral that are both equal and parallel? If the answer is yes, we determine that the quadrilateral is a parallelogram

P9- Parallelogram


When:
AB=DCAB =DC and also parallel
Then:
ABCDABCD is a parallelogram.

The fourth way: If in a quadrilateral, the diagonals bisect each other, then the quadrilateral is a parallelogram.

Let's ask, do the diagonals of this quadrilateral bisect each other? If the answer is yes, we will determine that the quadrilateral is a parallelogram.

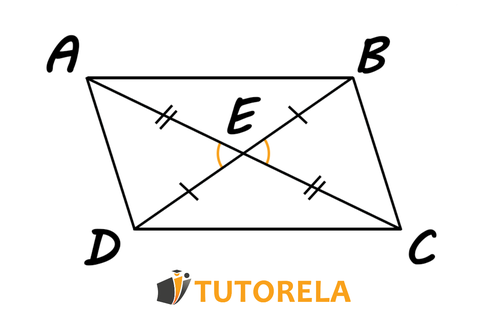

P4 -Parallelogram


When:
AE=ECAE=EC
and
DE=BEDE=BE
then:
ABCDABCD is a parallelogram.

The fifth way: If a quadrilateral has two pairs of equal opposite angles, the quadrilateral is a parallelogram.

Let's ask, does this quadrilateral have two pairs of equal opposite angles? If the answer is yes, we will determine that the quadrilateral is a parallelogram.

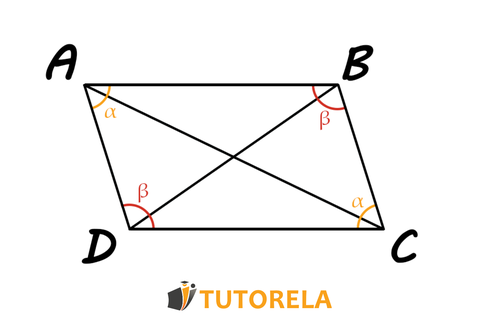

P12 - Parallelogram

When:
angle BB is equal and opposite to DD
and angle AA is equal and opposite to CC
then:
ABCDABCD is a parallelogram.

Join Over 30,000 Students Excelling in Math!
Endless Practice, Expert Guidance - Elevate Your Math Skills Today

Ways to identify a parallelogram

The easiest way to remember the theorems for identifying a parallelogram is to divide them into categories: sides, angles, and diagonals.
Remember - it's enough that only condition 11 is met and the quadrilateral before you is a parallelogram.

Let's look at the sides and check if one of the conditions is met:

  1. If in a quadrilateral every pair of opposite sides are parallel to each other, the quadrilateral is a parallelogram.
  2. If in a quadrilateral every pair of opposite sides are equal to each other, the quadrilateral is a parallelogram.
  3. If in a quadrilateral there is one pair of opposite sides that are both equal and parallel, the quadrilateral is a parallelogram.

Let's look at the diagonals and check if the following condition is met:

  1. If the diagonals of a quadrilateral bisect each other, the quadrilateral is a parallelogram.

Let's look at the angles and check if the following condition is met:

  1. If a quadrilateral has two pairs of equal opposite angles, the quadrilateral is a parallelogram.

Rotational symmetry in a parallelogram

The parallelogram manages to coincide with itself more than once during a complete rotation and therefore has rotational symmetry.
The order of rotation of a parallelogram is 22 - the parallelogram manages to coincide with itself twice during a rotation.
Click here to learn more about rotational symmetry!
